Our Manufacturing Infrastructure
State-of-the-art PCB manufacturing facility equipped with modern technology in Rajkot, Gujarat

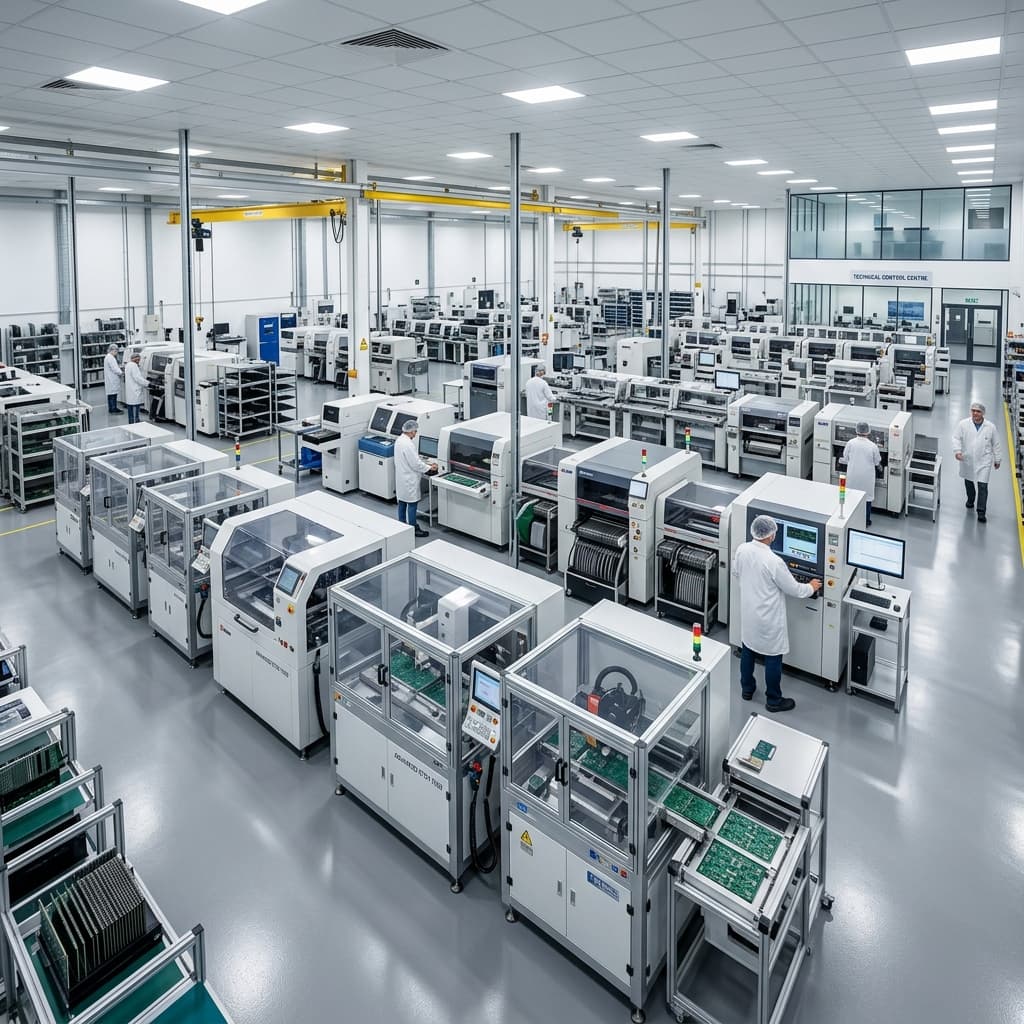

World-Class Facility
Our manufacturing facility in Rajkot, Gujarat spans over 10,000 square feet and houses some of the most advanced PCB manufacturing equipment available. From CNC drilling to automated optical inspection, every step of our production process is optimized for precision and efficiency.
The facility operates under strict quality management systems, with controlled environments for critical manufacturing stages, ensuring consistent quality across every production run.
Our Equipment
Advanced machinery and technology powering our PCB manufacturing
CNC Drilling Machine
High-speed CNC drilling systems for precision hole placement with ±0.05mm accuracy across all board types.
Automatic Etching Line
Automated chemical etching process ensuring consistent trace quality and uniform copper removal.

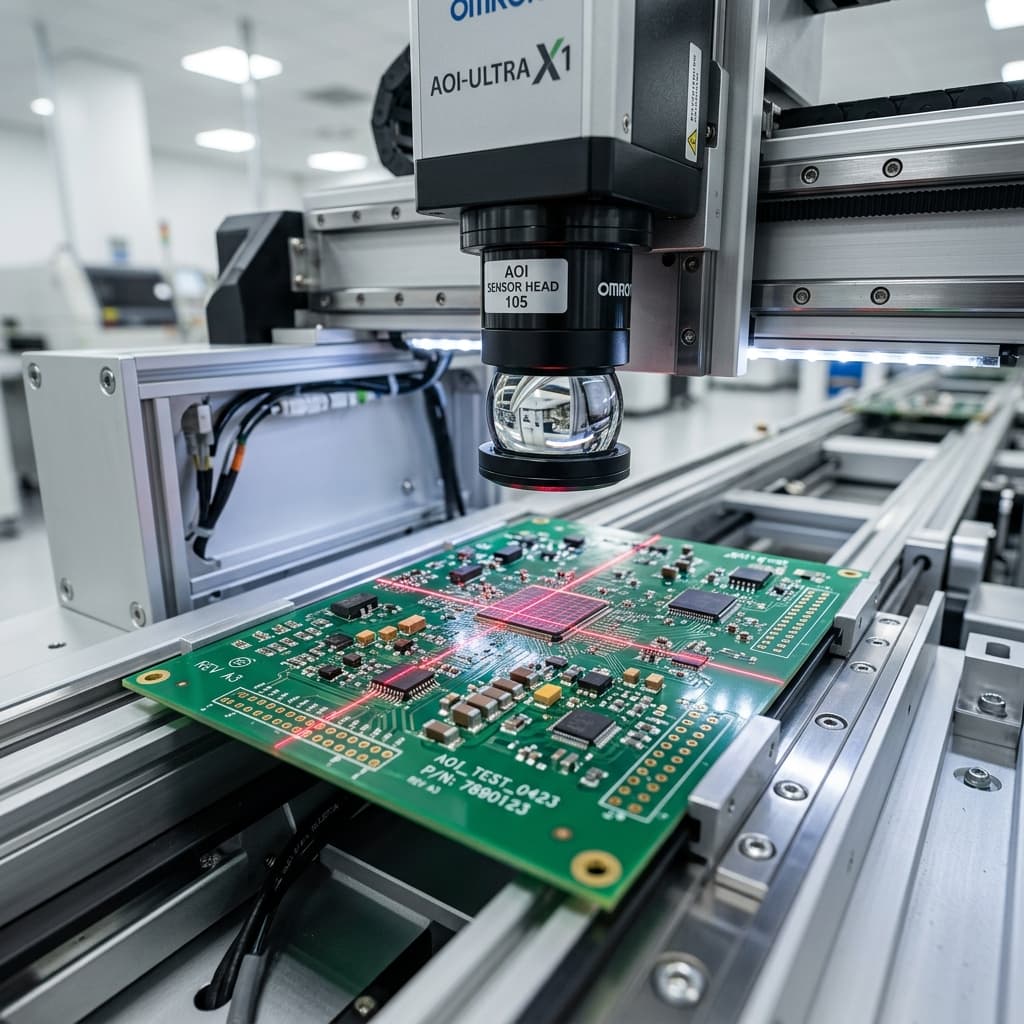

AOI System
Automated Optical Inspection for detecting surface defects, missing components, and alignment issues.
Electrical Testing
100% flying probe and fixture-based electrical testing verifying continuity and isolation on every board.
Reflow Oven
Multi-zone reflow soldering system with precise temperature profiling for reliable solder joints.
Chemical Processing
Advanced chemical processing lines for plating, surface finishing, and solder mask application.
Laser Stencil Cutter
Precision laser-cut stencils for accurate solder paste deposition in SMT assembly processes.
Pick & Place Machine
High-speed automated pick and place system capable of placing 20,000+ components per hour.
Quality Control
Quality is embedded at every stage of our manufacturing process. Our multi-point quality control system ensures that every PCB leaving our facility meets the highest standards of reliability and performance.
- Incoming material inspection and verification
- In-process quality checks at every stage
- Automated Optical Inspection (AOI)
- 100% electrical testing (flying probe / fixture)
- Final visual inspection before packaging
- Dimensional accuracy verification
- Solderability and surface finish testing
- Thermal stress testing for reliability
Want to See Our Facility?
Schedule a factory visit or request a detailed capability brochure from our team.
